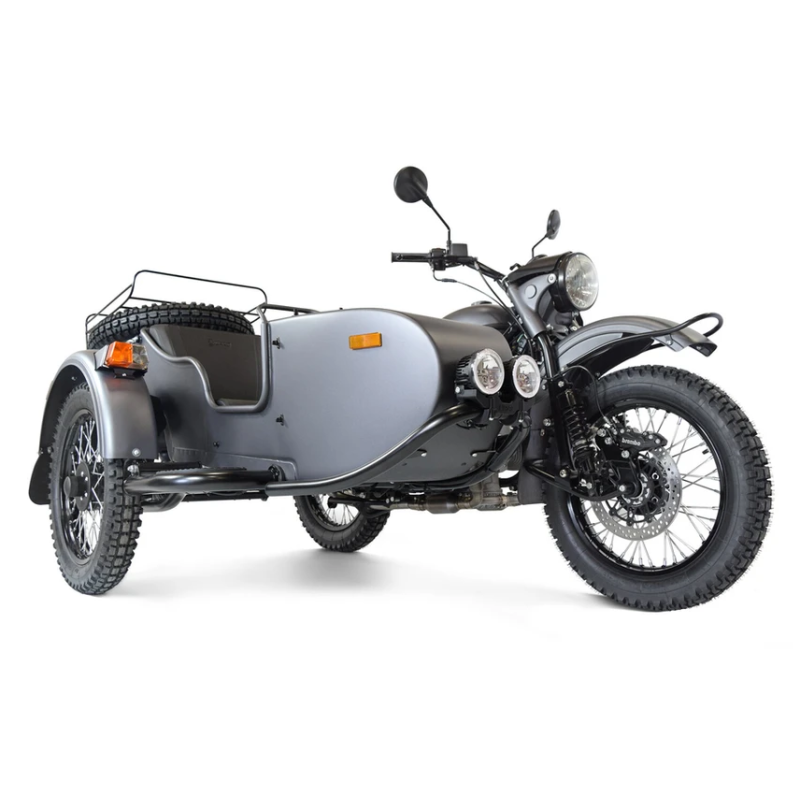

Ural Ranger 2WD

Ural Ranger 2WD

Ural Ranger team with switchable, locked sidecar drive without differential that means uncompromising rigid drive on loose ground such as gravel, sand, snow or ice!
The ranger stands for exceptional driving fun even off paved roads. The variant for the very rough - no gloss, no chrome, the RANGER comes in martial green-brown camouflage, urban white-grey camouflage or with the slightly defused look in matt asphalt-grey. The Ural Ranger is just right for desert, forest and wilderness!
As a team with sidecar drive and high ground clearance, it is ideally suited for the nomads among us, for those travellers who like to move away from the smooth roads. Enduro tyres, searchlights, spades, additional petrol canisters, spare wheel, luggage racks above the spare wheel are standard equipment with the Ural Ranger.

Technical data

Engine

Type: Air-cooled 2-cylinder 4-stroke boxer engine
Bore/stroke: 78 mm x 78 mm
Displacement: 745 cc
Power: 30 kW/41 hp at 5500 rpm
Torque: 56.9 Nm at 4300 rpm
Electronic gasoline injection
Top speed: approx. 115 km/h
Ignition: Electronic
Power transmission: coupling: 2 discs, dry
Gearbox: 4-speed and 1 reverse gear, claw switched
Final drive: cardan shaft on rear wheel
Switchable sidecar drive via cardan shaft
Starter: Kickstarter and electric starter


Frame/brakes

Frame: Double grinding steel tube frame suspension front: pushed double swingarm with hydraulic shock absorbers, 5-fold adjustable suspension rear. Double swingarm with hydraulic shock absorbers, 5-fold adjustable suspension
Sidecar: Swingarm with hydraulic shock absorber, 5-fold adjustable
Wheels: 3 cross-spoke wheels plus spare wheel
Rims: 2.15 x 19
Tyres: HEIDENAU K37 Enduro 4.00 x 19
Brakes: hydraulic disc brake on all three wheels


Dimensions and weights

Kerb weight: 363 kg
Permissible ges. Weight: 672 kg
Length/width/height: 2580/1700/1100 mm
Seat height: 850 mm
Usable tank capacity: 19 l, 95 octane super petrol
Fuel consumption: 7.0 l/100 km

Colors:

Sand Camouflage (beige/brown)
Olive green-matt
Asphalt grey-matt

Standard:
Enduro tyres, reserve canisters, spare wheel, luggage racks, searchlights, spades
